Imperial - Vent Cover Wood flush registers (new construction)

Imperial - Vent Cover Wood flush registers (new construction)

Regular price $64.26 USD
Regular price $50.05 USD Sale price $64.26 USD
Sale Sold out
Shipping calculated at checkout.
(0)
Duct Opening Size

Notes

Don’t see your size?  We can help you order a custom size.

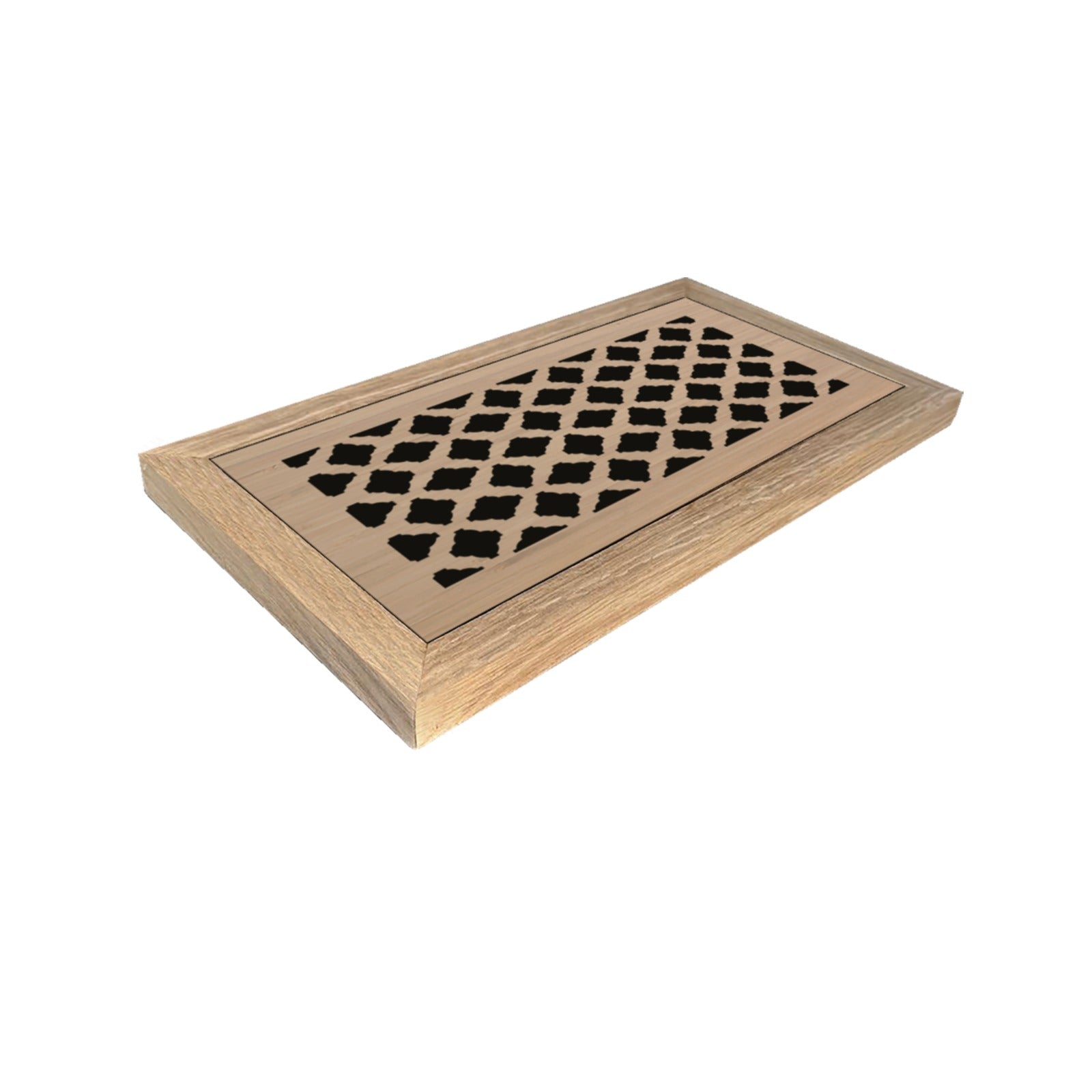

Our Wood flush register covers help transform a rooms appearance with minimal effort. Designed mostly for new floor installations, they can also be retrofitted by an experienced craftsman.

This Wood flush registers are for new construction. The register comes integrated with a box unit that makes installation easy. The installation will be done while the floor is being layout. With a wooden box build in the floor round the duct opening, this can be easily glued and… vent will drop in place. The vent is held in the box by magnets, making it easily removable from the box when needed.

It’s a very simple process, this way you don’t have to router or cut you flooring after is being installed.

The Flush registers will give you a seamless and invisible look between the floor and the register without making you trip over!

With a ¼” thick solid oak wood we are Making it easier to resurface the floors in the future. You don’t have to remove vents or buy new ones. The advantage of this Stellar Air Wood flush register is that they can be stained at the same time as the floor and you can also replace the design screen for any other designs we have available in the shop when you decide to change the home decor of your home!

If another size is needed, please contact us at info@stellarairvents.com and we will work on your project.

Designed to sit flush to ¾” thick hardwood floors. We can also custom make to your specific thickness.

These registers will not only last a lifetime, but are sure to enhance and spruce up the look of any room or space.

Product Details

-These Wall and Ceiling registers are 1/4 thick solid oak wood.
-The decorative vent has magnets that snap in place with the installation wood box.
-No dampers included.
-Your hardwood floors can be sanded without removing the vents.


Overview

Please refer to your air manufacturer’s information on the tag located with your unit for the specifications to be compatible with the Product Details of your selected Stellar Air design.

*Please note that all Stellar Air covers are made with quality natural wood and are unstained and unfinished. if you are interested in getting your vent white primer base ( this is for customers that would like to add color paint later), you can select white primer base option from the drop down menu. Stain option is not available.


How to Measure

Our craftsmen will fabricate a ventilator to fit your supply duct opening.

  1. Remove the old register or grille from the floor, ceiling, or wall to expose the actual duct opening.
  2. Measure the inside dimensions of the duct opening.
  3. The width will always be listed first, followed by the length.

Specs

2 ton 781 CFM (2% airflow drop)
0.0201 I.W.C. pressure drop
464 FPM (186% of recommended)

3 ton 1152 CFM (4% airflow drop)
0.0329 I.W.C. pressure drop
602 FPM (241% of recommended)

4 ton 1552 CFM (3% airflow drop)
0.0632 I.W.C. pressure drop
746 FPM (298% of recommended)
