Elevation – Metal Floor
Elevation – Metal Floor
Couldn't load pickup availability
Don’t see your size? We can help you order a custom size.
Share

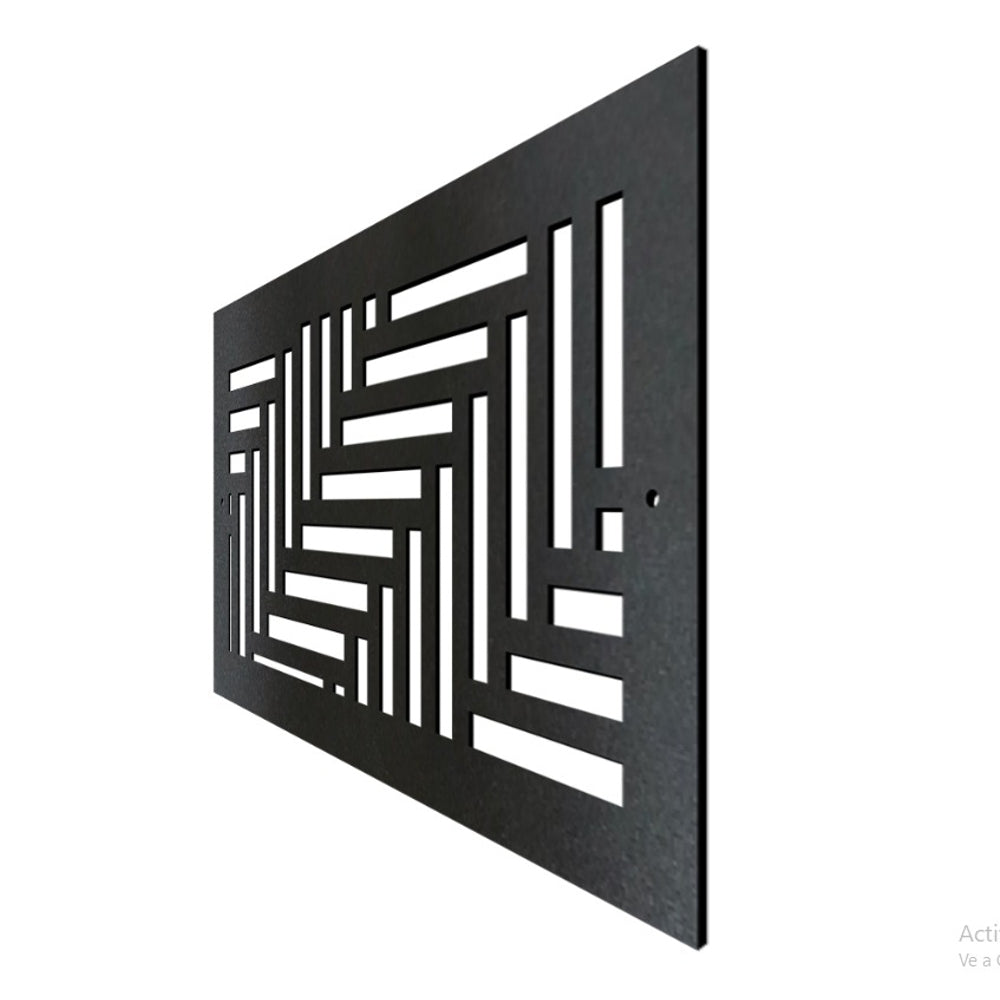

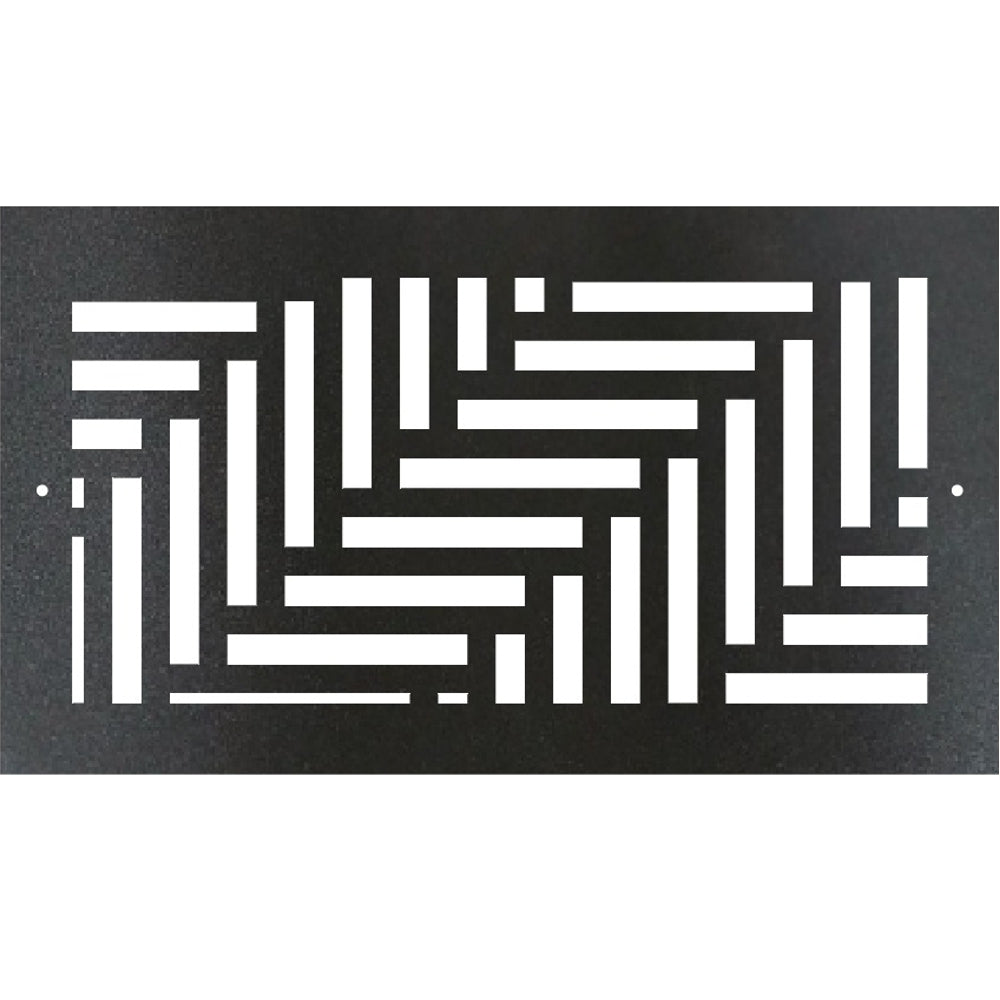

This" Elevation" presents a striking structural design that echoes the essence of a ladder, offering an engaging 3D perspective that captivates and inspires. This distinctive vent cover model encourages a sense of upward movement and dynamism, making it an ideal choice for those looking to infuse their spaces with an element of architectural intrigue. Perfect for both modern and traditional settings, "Elevation" transforms ordinary vent covers into captivating wall art that draws the eye and elevates the decor.
Our metal register covers help transform a rooms appearance with minimal effort. They are designed to sit on top of the floor and can be held down by screws. The registers are black painted, this finish gives a protective coating that will resist staining or corrosion. With a 1/16” thickness and a well-defined cut, these registers will not only last a lifetime but will also enhance the look of any room.

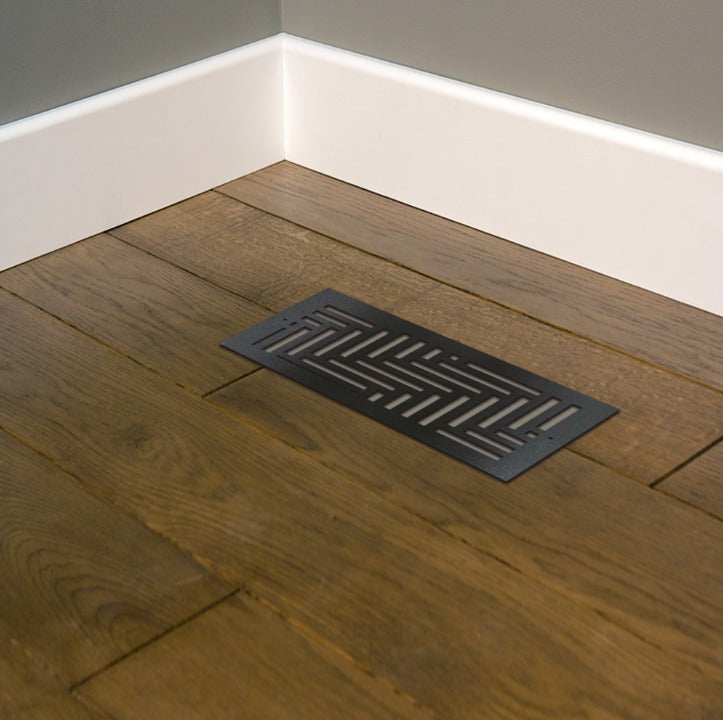

For an even more enhanced look, the customer can route out their hardwood floor by 1/16” so the vent will sit flush with the floor as you can see in some pictures.
We currently offer these registers in 4 different sizes. If another size is needed, please contact us at info@stellarairvents.com and we will work on your project.
Product Details
-These floor vents are 1/16" thick metal with a powder coated black.
-Comes with 2 holes for installation so that customers can drill them.
-No dampers included.
Overview
Please refer to your air manufacturer’s information on the tag located with your unit for the specifications to be compatible with the Product Details of your selected Stellar Air design.
*Please note that all Stellar Air covers are made with quality steel metal
How to Measure
Our craftsmen will fabricate a ventilator to fit your supply duct opening.
- Remove the old register or grille from the floor to expose the actual duct opening.
- Measure the inside dimensions of the duct opening.
- The width will always be listed first, followed by the length.
Specs
2 ton 781 CFM (2% airflow drop)
0.0201 I.W.C. pressure drop
464 FPM (186% of recommended)
3 ton 1152 CFM (4% airflow drop)
0.0329 I.W.C. pressure drop
602 FPM (241% of recommended)
4 ton 1552 CFM (3% airflow drop)
0.0632 I.W.C. pressure drop
746 FPM (298% of recommended)
